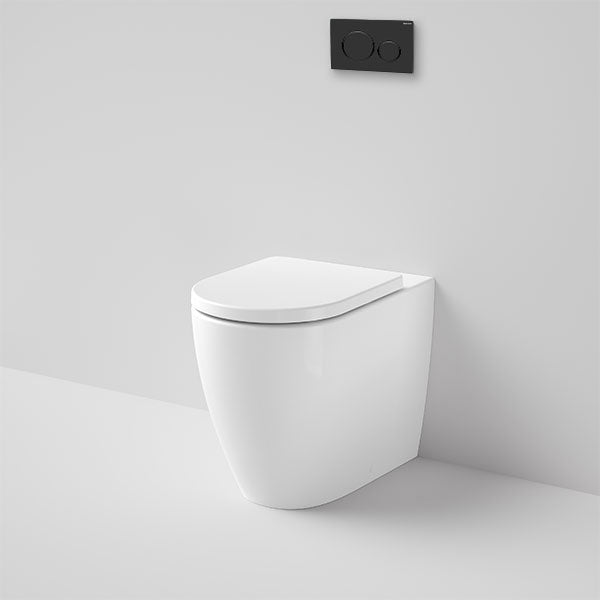

Build Your In-Wall Toilet: Caroma Urbane II Cleanflush Wall Faced Toilet Pan with Geberit Sigma Cistern Option

Description

The Caroma Urbane II Cleanflush Wall Faced Toilet Pan delivers powerful flushing performance with advanced Cleanflush® technology, helping to eliminate waste effectively while reducing water usage for greater efficiency. Designed without a traditional rim, it makes cleaning easier and more hygienic, while the high-quality ceramic finish ensures long-lasting durability and a sleek, modern look. With its comfortable, ergonomic design and wall-faced style for easy installation and a seamless fit, this toilet pan combines strength, style, and everyday practicality for your bathroom.

Contemporary low-profile wall faced design for a modern, streamlined bathroom look

Integrated Caroma Cleanflush® rimless technology for superior hygiene and easier cleaning

WELS 4 Star rated, 4.5/3L (3.5L average flush) when installed with compatible Caroma Urbane® II cisterns

GermGard® antimicrobial protection helps inhibit the growth of bacteria and mould

Universal UniTrap® suits both S and P trap installations

Drop-zone and bowl design reduces splashback and minimises cleaning effort

Includes soft close toilet seat with quick-release function for easy removal and cleaning

Optional coloured seat hinge caps available to match Caroma Urbane® II tapware finishes

Supplied with patented Uni-Orbital® Connector and D82 fixing bracket for easier installation

Designed to pair perfectly with the complete Caroma Urbane® II Bathroom Collection

Supported by a 20 year warranty for toilet pan and 5 year warranty for toiler seat

Specifications

Pan – Caroma Urbane II Cleanflush Wall Faced Pan 843245W (4.5/3L)

WELS water efficiency: WELS 4 star rated
WELS water consumption:  Dual flush, 4.5L/3L (3.5L average flush)
WELS registration number: L06661
Watermark certification: All Caroma toilet pans are Watermark certified

Construction material:   Vitreous China Pan
Finish/coating:   Gloss white ceramic glaze
Overall height:   470mm (pan & seat)
Pan height:   440mm (excluding seat)
Projection from wall:   570mm
Overall width:   350mm (pan)
Trap:   Universal S or P trap
Set out:   Variable 60-120 using supplied connector; 90mm recommended.
Water inlet location:   N/A
Warranty : 20 years (Toilet Pan), 5 years (Toilet Seat)

Find out more about   WELS   and   Watermark   certification and the important role they play in helping you choose water-efficient and safe products that are manufactured to strict Australian plumbing and building standards.
