Description

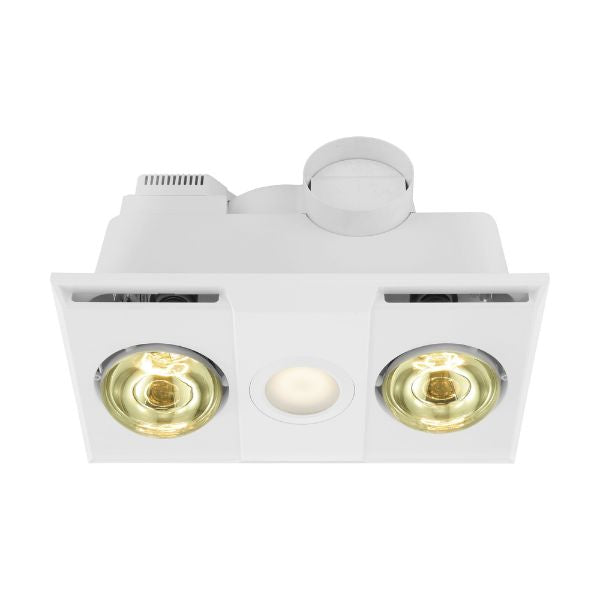

With a powerful 460 m³/hour exhaust, energy saving LED light, and 2 heat globes, the HEATFLOW range will deliver comfort to your bathroom year-round. Suits small to medium sized bathrooms.
480mm L x 290mm W x 260mm H
Extraction capacity: 460m³/hr
Modern slimline design
40W AC motor exhaust fan
1 x 13W LED 4000K Cool White with 950lm
2 x 275W E27 heat lamp for instant heating
Side ducted – 3.0 m duct included
Wall controller with 3 switches included
Minimum cavity height 250mm
Spare heat lamp bulbs available here
3 Year In-Home Warranty
Specifications
Voltage : 220-240V
Illuminant Type: 13W LED
Heat Type: Infrared 2 x 275W
Exhaust Type: 40W AC
Material: Plastic
Lumens: 950lm
Colour Temperature: 4000K Neutral White
Air Movement: 460m³/h
Dimmable : Yes
Wall Control: Included
Length: 480mm
Width: 290mm
Height: 260mm
Min Cavity Height: 250mm
Cutout: 430mm x 250mm
Weight: 3.2kg
How to select bathroom exhaust fans
When it comes to selecting between bathroom exhaust options, it is best to choose a model that suits the heating and extraction requirements of the size of your bathroom. Motor size and ducting outlet size will equate to how many cubic meters of air is circulated out of your bathroom.
It is recommended to have 15 air changes per hour for bathrooms and 10 air changes per hour for WCs, the following table can act as a guide in deciding which bathroom 3-in-1 will work best for your project.
Model
Airflow
Toilet Size (m³)
Room Size (m³)
Bathroom Size (L x W x H)
Vesuvius 2 Heat
260m³/hr
26m³
17.33m³
2.72 x 2.75 x 2.4
Vesuvius 4 Heat
260m³/hr
26m³
17.33m³
2.72 x 2.75 x 2.4
Heatflow 2 Heat
460m³/hr
46m³
30.66m³
3.6 x 3.6 x 2.4
Heatflow 4 Heat
460m³/hr
46m³
30.66m³
3.6 x 3.6 x 2.4
Inferno
550m³/hr
55m³
38.40m³
4.0 x 4.0 x 2.4
What’s in the box?
1 x Bathroom Heater Exhaust Fan Light
1 x 3.0m 120mm diameter duct
1 x 3 gang wall switch
