Description

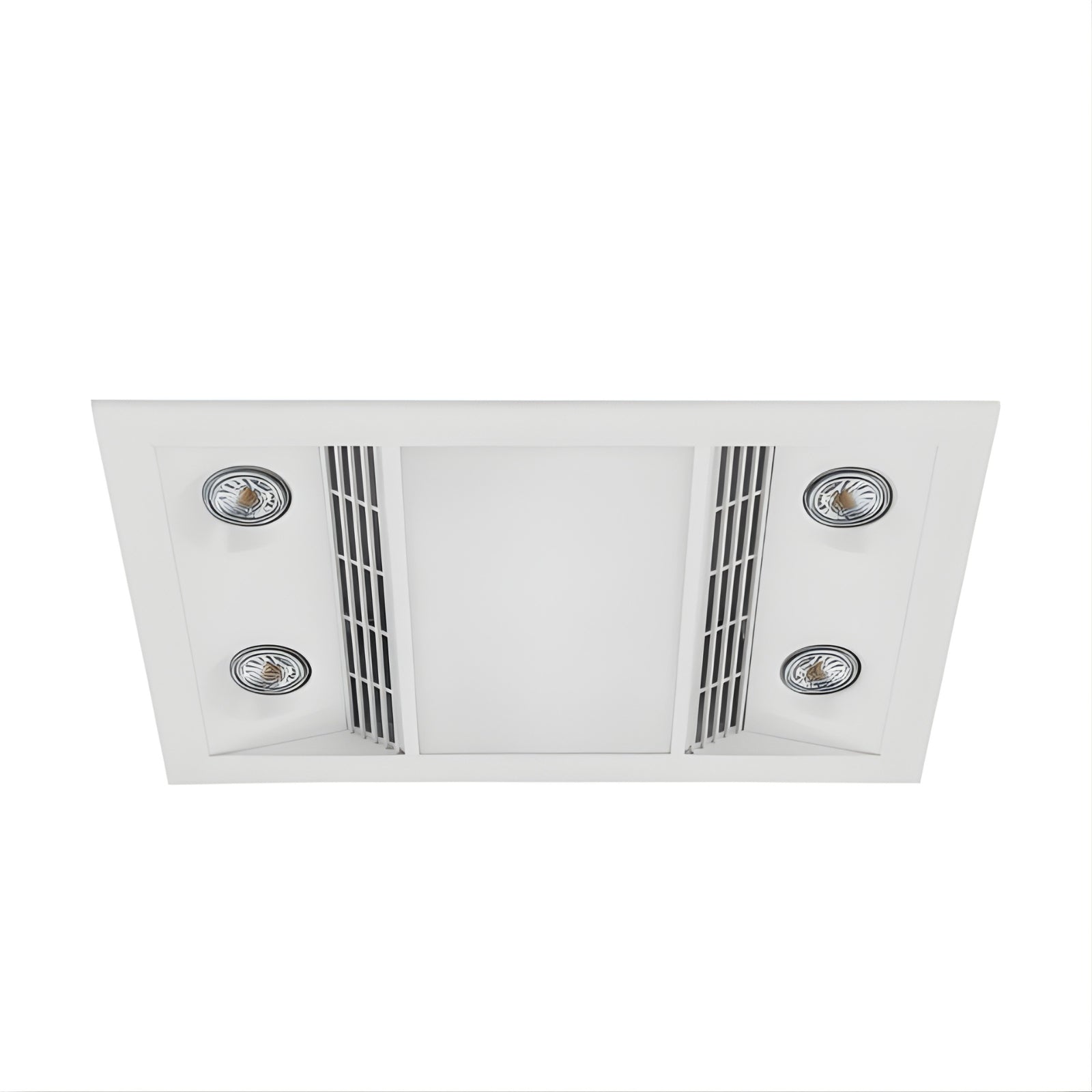

The top of the range INFERNO features a 1000W halogen heat lamp, exceptional 550m3/hour exhaust, and 4 x 400 lumen LED lamps. Suits larger bathrooms.
500mm L x 350mm W x 213mm H
Extraction capacity: 550m³/hr
Modern slimline design
High performance 55W AC motor exhaust fan
4 x 5W LED GU10 4000K Neutral White with 400lm each (total 1600lm)
1 x 1000W R7 heat lamp for instant heating
Side ducted – 3.0m duct included
Wall controller with 3 switches included
Minimum cavity height 250mm
3 Year In-Home Warranty
Specifications
Voltage : 220-240V
Illuminant Type: 4 x 5W GU10-LED
Heat Type: 1000W R7
Exhaust Type: 55W AC
Material: Plastic
Lumens: 4 x 400
Colour Temperature: 4000K Neutral White
Air Movement: 550m³/h
Dimmable : Yes
Wall Control: Included
Length: 500mm
Width: 350mm
Height: 213mm
Min Cavity Height: 250mm
Cutout: 470mm x 315mm
Weight: 6kg
How to select bathroom exhaust fans
When it comes to selecting between bathroom exhaust options, it is best to choose a model that suits the heating and extraction requirements of the size of your bathroom. Motor size and ducting outlet size will equate to how many cubic meters of air is circulated out of your bathroom.
It is recommended to have 15 air changes per hour for bathrooms and 10 air changes per hour for WCs, the following table can act as a guide in deciding which bathroom 3-in-1 will work best for your project.
Model
Airflow
Toilet Size (m³)
Room Size (m³)
Bathroom Size (L x W x H)
Vesuvius 2 Heat
260m³/hr
26m³
17.33m³
2.72 x 2.75 x 2.4
Vesuvius 4 Heat
260m³/hr
26m³
17.33m³
2.72 x 2.75 x 2.4
Heatflow 2 Heat
460m³/hr
46m³
30.66m³
3.6 x 3.6 x 2.4
Heatflow 4 Heat
460m³/hr
46m³
30.66m³
3.6 x 3.6 x 2.4
Inferno
550m³/hr
55m³
38.40m³
4.0 x 4.0 x 2.4
What’s in the box?
1 x Bathroom Heater Exhaust Fan Light
1 x 3.0 m 120mm diameter duct
1 x 3 gang wall switch
