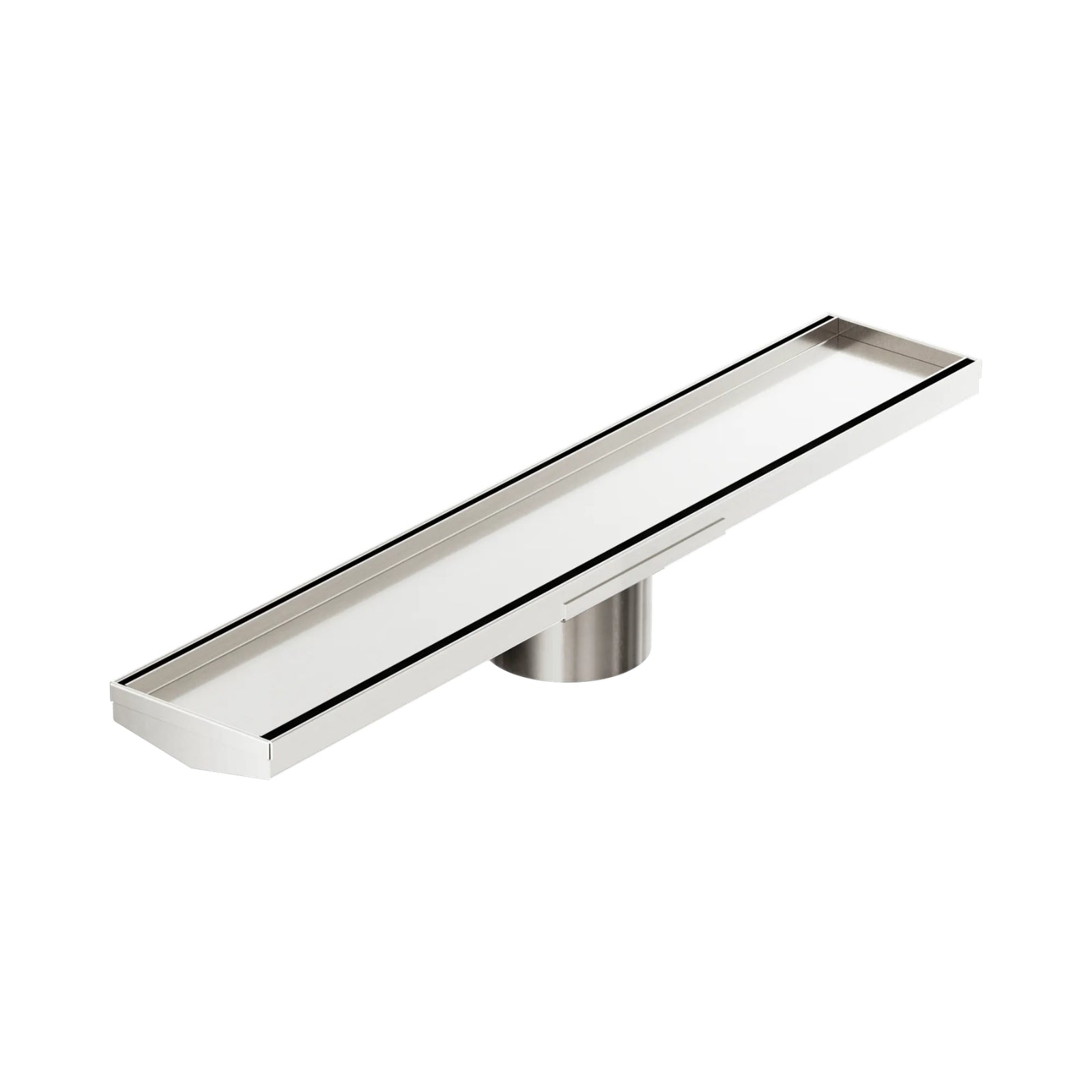

Nero Tile Insert V Channel 600x106mm Floor Grate 90mm Outlet Brushed Nickel

Description

The Nero Tile Insert V Channel Floor Grate in brushed nickel offers a clean, integrated floor waste solution designed to sit neatly within tiled surfaces. Made from 304 stainless steel, it features a tile insert design that allows your chosen tile to sit within the grate for a consistent finish across the floor. With its 600 x 106mm format and 90mm outlet, it is part of Nero�s floor waste collection, combining a refined appearance with a practical drainage component suited to modern bathroom layouts.

Fits 100mm puddle flange for easy integration

Suitable for tiles with a thickness of less than 10mm

Durable 304 stainless steel construction ensures long-lasting performance.

Separate waste outlet and grate design provides greater installation flexibility.

V-channel profile enhances water flow speed and drainage efficiency

Available in 5 premium finishes to match various bathroom styles.

Note: Outlet and grate are packed separately. Holesaw not included. You can add a hole saw to your order from the drop down box if required

Supported by a 10 year warranty

Specifications
Watermark certification: All Nero Floor grates are watermark certified
Construction material: 304 Stainless Steel
Finish/coating: PVD
Overall length: 600mm
Overall width: 106mm
Required Hole Size: 90mm
Warranty: 10 Years
Spec Sheet
Download the specification sheet below:
Nero Tile Insert V Channel 600x106mm Floor Grate 90mm Outlet Brushed Nickel
What’s In The Box
1 x Floor Grate, 1x Outlet, Installation Instructions
