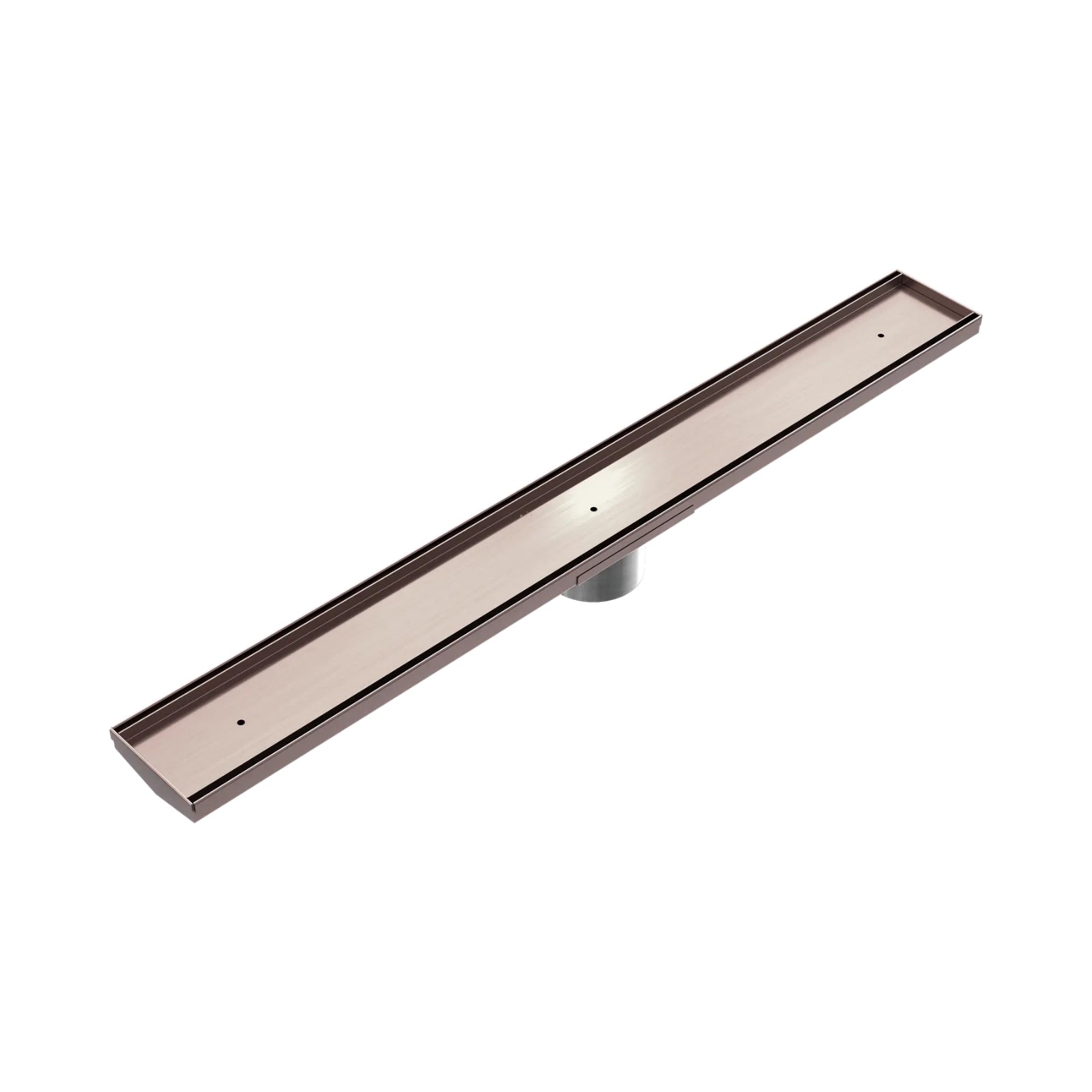

Nero Tile Insert V Channel 900x106mm Floor Grate 90mm Outlet Brushed Bronze

Description

The Nero Tile Insert V Channel Floor Grate in brushed bronze offers a streamlined solution for integrating drainage into tiled surfaces. Designed as a tile insert style, it allows your chosen tile to sit within the grate for a more cohesive floor finish, while the V channel form provides a defined drainage path. With its 900 x 106mm size and 90mm outlet configuration, it aligns with standard bathroom layouts, making it a considered choice for spaces where a consistent brushed bronze finish is carried across fixtures.

Fits 100mm puddle flange for easy integration

Suitable for tiles with a thickness of less than 10mm

Durable 304 stainless steel construction ensures long-lasting performance

Separate waste outlet and grate design provides greater installation flexibility

V-channel profile enhances water flow speed and drainage efficiency

Available in 5 premium finishes to match various bathroom styles.

Note: Outlet and grate are packed separately. Holesaw not included. You can add a hole saw to your order from the drop down box if required

Supported by a 10 year warranty

Specifications
Watermark certification: All Nero Floor grates are watermark certified
Construction material: 304 Stainless Steel
Finish/coating: PVD
Overall length: 900mm
Overall width: 106mm
Required Hole Size: 90mm
Warranty: 10 Years
Spec Sheet
Download the specification sheet below:
Nero Tile Insert V Channel 900x106mm Floor Grate 90mm Outlet Brushed Bronze
What’s In The Box
1 x Floor Grate, 1x Outlet, Installation Instructions
