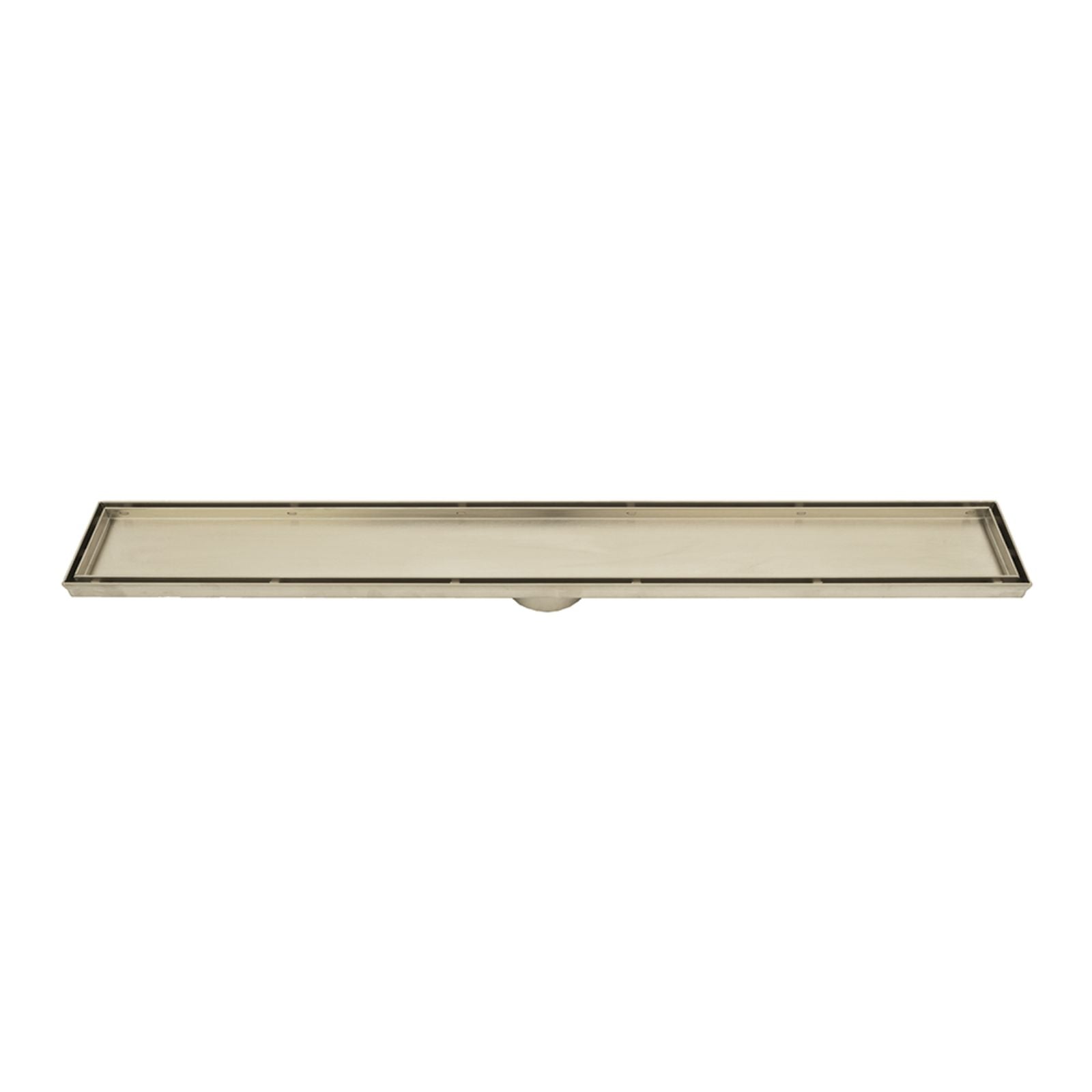

Radiant Tile Insert Linear Shower Grate – Warm Brushed Nickel

Description

he Radiant Tile Insert Linear Shower Grate is a simple yet elegant rectangular design which will all but disappear after tile installation. These grates come in a range of sizes to suit any bathroom.

316 Marine Grade Stainless Steel

Warm Brushed Nickel PVD finish

Rolled edges to all exposed edges

Available in 600mm, 700mm, 800mm and 900mm lengths

Australian Watermark approved

12mm deep insert can accommodate up to 10mm tile and adhesive

With fixed central wastes

Puddle flange is NOT included with this grate

Supported by a 7 year warranty

Specifications

Construction material : Stainless steel

Finish/coating : PVD

Width : 100mm

Length : 600mm / 700mm / 800mm / 900mm

Depth : 52mm

Insert depth : 12mm

Waste pipe size : 80mm

Outlet diametre : Ø 74mm

Warranty : 7 years

Spec Sheet

Download the specification sheet below:
Radiant Tile Insert Linear Shower Grate – 600mm length + 74mm outlet – Brushed Nickel
Radiant Tile Insert Linear Shower Grate – 700mm length + 74mm outlet – Brushed Nickel
Radiant Tile Insert Linear Shower Grate – 800mm length + 74mm outlet – Brushed Nickel
Radiant Tile Insert Linear Shower Grate – 900mm length + 74mm outlet – Brushed Nickel

What’s In The Box

Radiant Tile Insert Linear Shower Grate – Brushed Nickel
