Thermogroup Underfloor Heating 200W/m² Dual Controller Kit

Description

The Thermogroup Underfloor Heating 200W/m² Dual Controller Kit delivers smooth, even warmth underfoot while keeping your space clean and clutter-free with no visible heaters. Designed for efficiency and comfort, it provides gentle radiant heat with easy temperature control and zoning to suit your daily routine. Built for reliability, it helps ease worries about installation, running costs, and compatibility by offering a quality, well-matched system for modern flooring and long-term home value.

The Dual Thermostat allows you to control your underfloor heating and an additional appliance, such as a heated towel rail, on individual schedules from the single thermostat.

Thermonet underfloor heating full kit ready for installation either under the screed or above the screed, directly under the tiles.

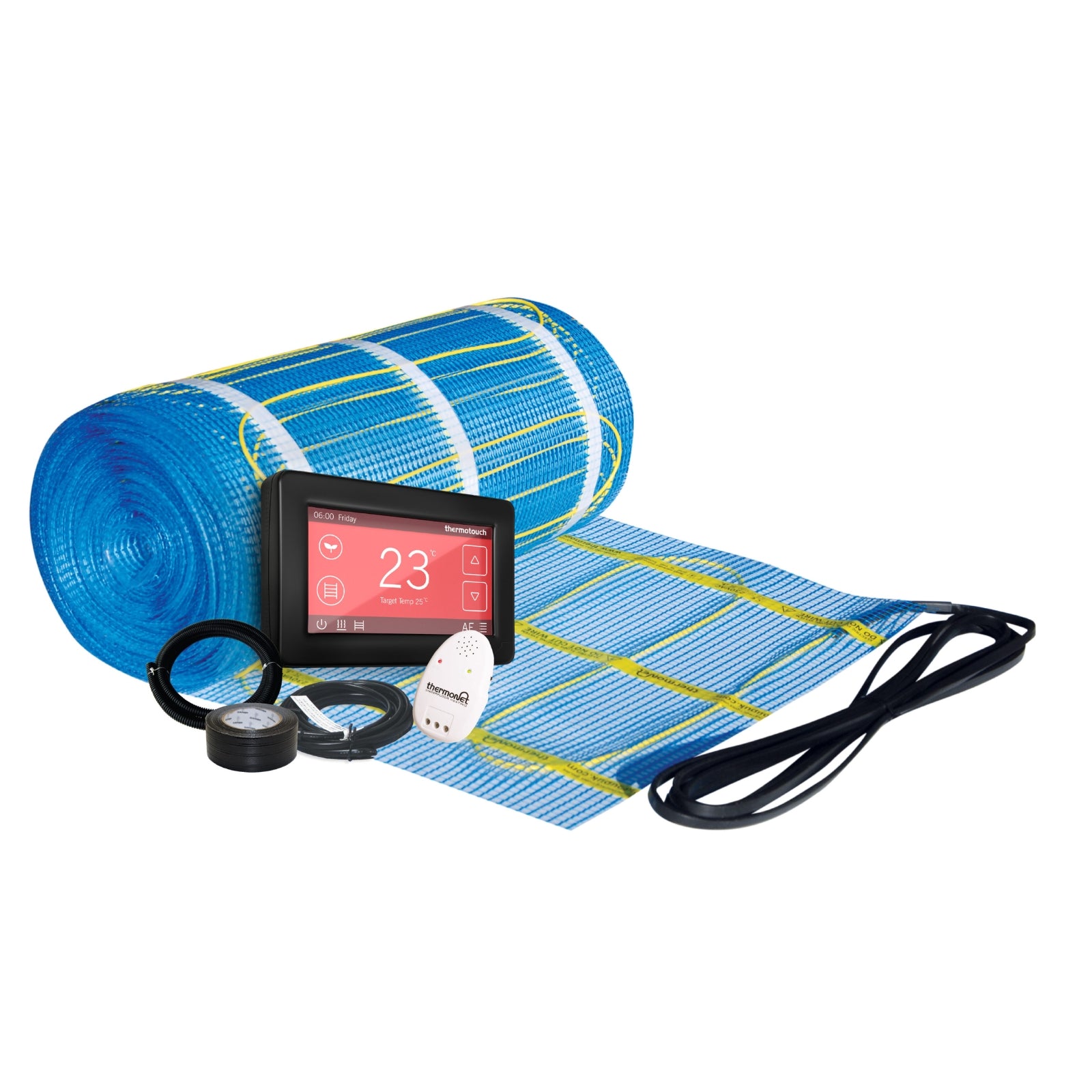

Kit items include Thermonet 200W/m ² Mat, Dual Control Thermostat (5245), Floor Temperature Sensor, Sensor Conduit, Cable Monitor and Installation Guide

Choose from 1 square metre through to 10 square metre kits

Thermonet is installed wire-side-down which means the heating cable is protected from damage during installation by the hard wearing mesh layer

Suitable for installation in screeds of 20mm to 50mm, and is recommended to be fixed to insulation boards

Max temperature 28 degrees

Protection rating IP68

5m cold tail length

The system comes with a lifetime warranty plus a 3 year warranty on thermostats

Made in UK

Specifications

Width : 500mm
Heated width : 430mm
Thickness : 3.5mm
Max. temperature : 28°C
IP rating : IP68
Voltage : 240V
Wattage : 200W/m²
Conductor type : Single ended
Cold tail length : 5m

Warranty : Lifetime on heating mat and 3 years on thermostat

Downloads

Download the specification sheet below:
Thermogroup Underfloor Heating 200W/m² Dual Controller Kit

Download the installation instructions below:
Thermogroup Underfloor Heating 200W/m² Dual Controller Kit

Running Costs

Greater efficiency can also be achieved by including by:

Including a layer of insulation

Splitting the heating into different zones

Using a programmable thermostat to only have the heating on when you need it

There is a number of factors that will influence the efficiency and the running costs of your underfloor heating. This includes:

The set temperature

The size and design of the room/home

Level of insulation

External temperatures

Flooring products used

Your electricity tariff

Length of time the floor heating is on

If there is any other heat sources in the room

To get an estimated running cost use   Thermogroup’s running costs calculator .

FAQ’s

Click here to see   Why Underfloor Heating is a must for your bathroom   and to see all of the answers to your questions.

What’s In The Box

Thermonet 200W/m² Mat

Programmable Thermostat

Floor Temperature Sensor

Sensor Conduit

Cable Monitor

Installation Guide & Warranty Form
