Thermogroup Underfloor Heating 200W/m² Full Kit

Description

An electric underfloor heating system provides an energy efficient, on demand heating system as well as interior design flexibility and improves comfort and space for everyone. This is a full kit, ready for installation. Simply select the size of your space from the drop down selections.

Thermonet underfloor heating full kit ready for installation either under the screed or above the screed, directly under the tiles.

Kit items include Thermonet 200W/m ² Mat, Programmable Thermostat, Floor Temperature Sensor, Sensor Conduit, Cable Monitor and Installation Guide

Choose from 1 square metre through to 10 square metre kits

Thermonet features 3.5mm TwistedTwin cable, the unique stress free cable construction creates a longer lasting heating cable with zero electromagnetic field (Zero EMF)

Thermonet is installed wire-side-down which means the heating cable is protected from damage during installation by the hard wearing mesh layer

Suitable for installation in screeds of 20mm to 50mm, and is recommended to be fixed to insulation boards

Max temperature 28 degrees

Protection rating IP68

5m cold tail length

The system comes with a lifetime warranty plus a 3 year warranty on thermostats

Made in UK

To get an estimated running cost use Thermogroup’s   running costs calculator.

Specifications

Width : 500mm
Heated width : 430mm
Thickness : 3.5mm
Max. temperature : 28°C
Protection rating : IP68
Wattage : 200W/m²
Conductor type : Single ended
Cold tail length : 5m
Warranty : Lifetime on heating mat and 3 years on thermostat

Downloads

Download the specification sheet below:
Thermogroup Underfloor Heating 200W/m² Full Kit

Download the installation instructions below:
Thermogroup Underfloor Heating 200W/m² Full Kit

Running Costs

Greater efficiency can also be achieved by including by:

Including a layer of insulation

Splitting the heating into different zones

Using a programmable thermostat to only have the heating on when you need it

There is a number of factors that will influence the efficiency and the running costs of your underfloor heating. This includes:

The set temperature

The size and design of the room/home

Level of insulation

External temperatures

Flooring products used

Your electricity tariff

Length of time the floor heating is on

If there is any other heat sources in the room

To get an estimated running cost use   Thermogroup’s running costs calculator .

FAQ’s

Click here to see   Why Underfloor Heating is a must for your bathroom   and to see all of the answers to your questions.

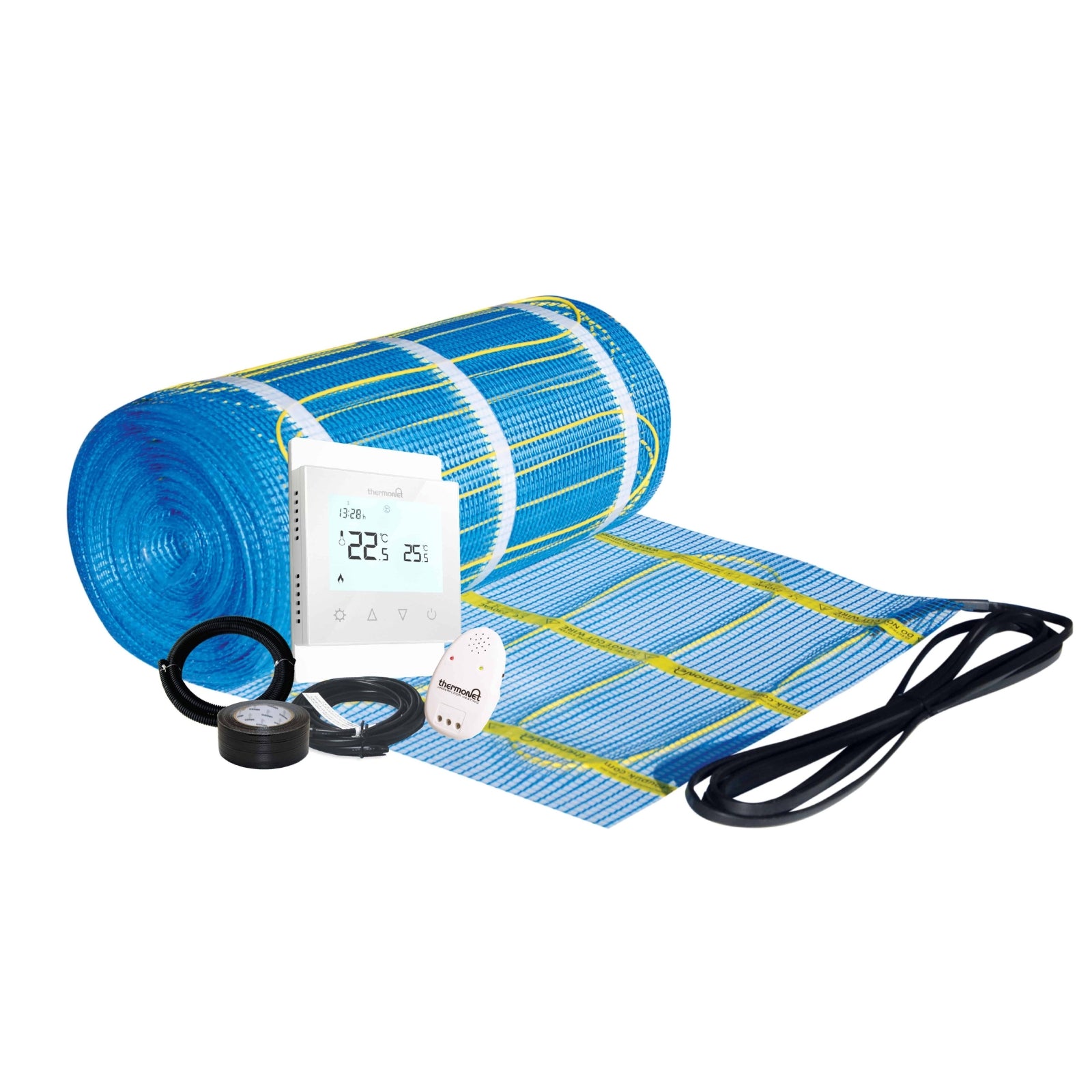

What’s In The Box

Thermonet 200W/m² Mat

Programmable Thermostat

Floor Temperature Sensor

Sensor Conduit

Cable Monitor

Installation Guide & Warranty Form
